NF-1545 Guitar Effect Prototyping Kit

This is the Guitar Effect Prototyping Kit. This is a development kit made for those individuals that like to prototype and make their own guitar effects kits, like a Jimi Hendrix "Fuzz Face" or other guitar effects circuit.

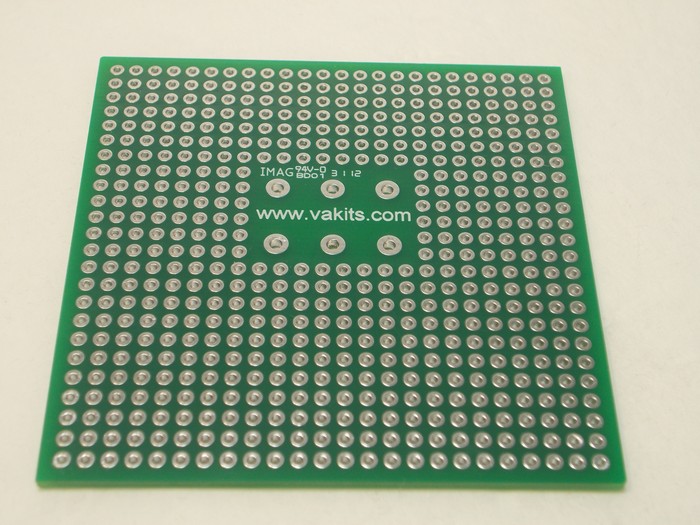

The PCB is 2.5" x 2.5" and has the DPDT footswitch pads built right into the PCB. The PCB and footswitch can be made to fit a lot of common stompboxes. You can even take apart an old unit and put your own circuit in one.

This kit includes a PCB and the footswitch. There are plenty of circuits on the internet that you can use. A good website is www.runoffgroove.com which has a lots circuits you can build.

The PCB is 0.062", FR-4 expoxy glass

You will get a Prototype PCB and a DPDT footswitch.
