NF-1743 Electronic Decision Maker Kit

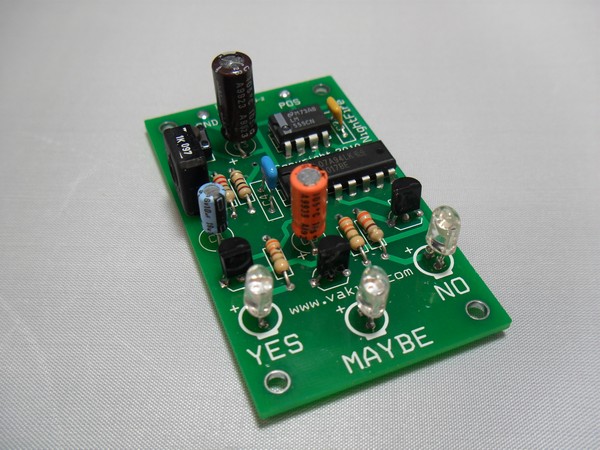

This is the Electronic Decision Maker Kit. You can use this kit to help you make decisions if you are not too sure of which way to go. You will get a definite YES, NO, or MAYBE.
The circuit works like this: when it is first turned on, a random LED will come on. Press & hold the pushbutton switch down and all of the LEDs will begin to flash on and off. You can adjust the speed of the LEDs flashing by adjusting the potentiometer. When you are ready for an answer, release the pushbutton switch and see which way you should go. Naturally, if you don't like that answer, you can go again!

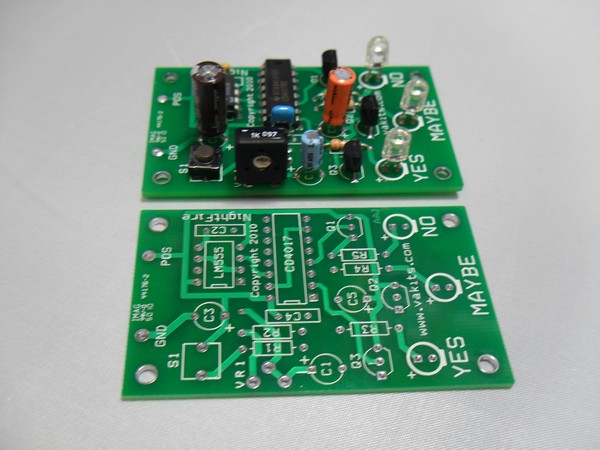

The PCB is double-sided, plated thru-hole, 1.50" long x 2.50" wide made of .062" FR-4 epoxy glass. It has green Solder Mask (LPI) on both sides with white Silk Screen on the Top side. It includes four mounting holes.
This kit does not include the tools you will need to assemble the circuit. You will need tools such as a soldering iron, solder, wire cutters, etc.
To assemble the kit, open and print the Schematics and the Parts List below. The General Instructions are helpful notes.
General Instructions Schematics Parts List
