NF-1756 LED Chaser Kit - Orange

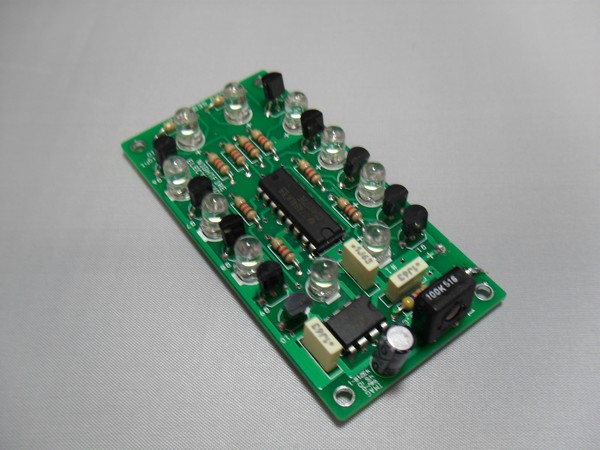

This is the LED Sequencer #1 Kit. This is a neat circuit that lights up 10 LEDs in sequence. The circuit includes an adjustment for speeding up or slowing down the LEDs. Use this in a bunch of different places.
You can remote the LEDs to get your own special effects. Try putting in different colors of LEDs for even greater effects. This kit will come with a set of 10 LEDs.

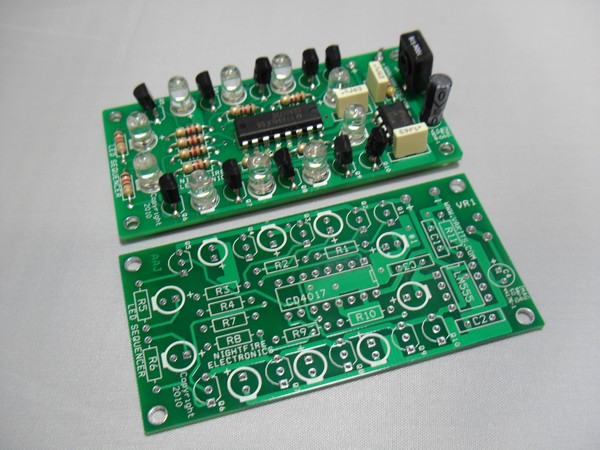

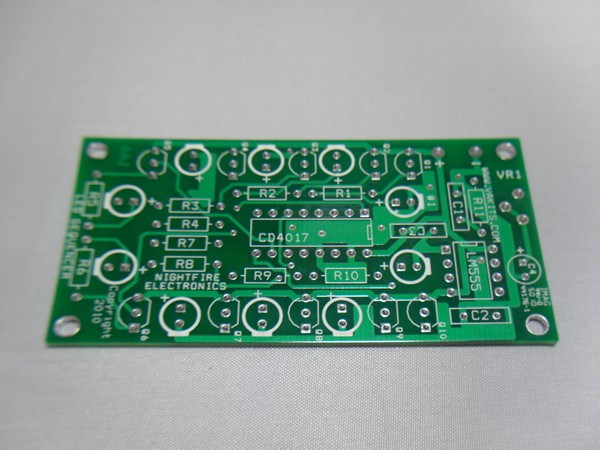

The PCB is double-sided, plated thru-hole, 1.50" long x 3.00" wide made of .062" FR-4 epoxy glass. It has green Solder Mask (LPI) on both sides with white Silk Screen on the Top side. It includes 4 mounting holes. This kit does not include the tools you will need to assemble the circuit. You will need tools such as a soldering iron, solder, wire cutters, etc.
To assemble the kit, open and print the Schematics and the Parts List below. The General Instructions are helpful notes.
General Instructions Schematics Parts List
We now have a tutorial on how to assemble this kit. Enjoy!
And Please be sure to Subscribe to our youtube channel for new kit releases and tutorials!
