NF-1650 Op Amp Development Kit - LM741

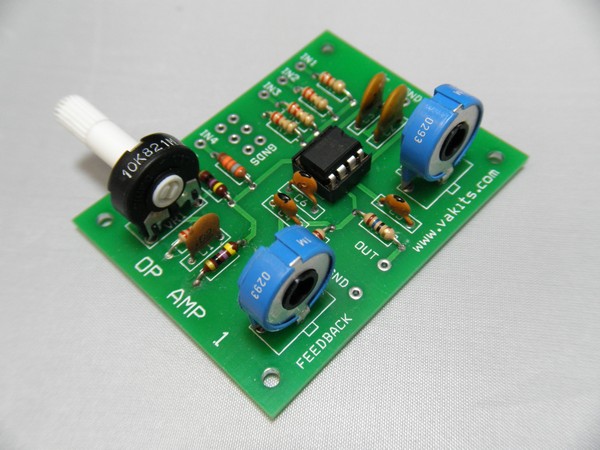

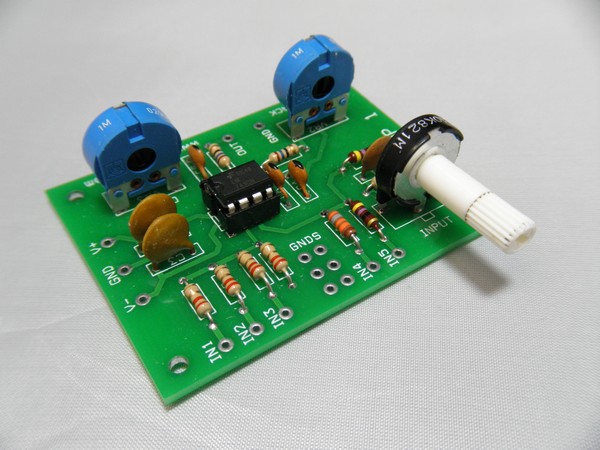

This is a General Purpose Op Amp Development kit. It includes a double-sided PCB designed by us to help in your Single Op Amp circuit experiments along with a couple of Op Amps in DIP-8 package. This PCB has been developed so that you can build a wide variety of circuits.
It includes 3 inputs for the Inverting side and 2 inputs for the Non-Inverting side with a potentiometer. The feedback loop includes provisions for a potentiometer with a resistor in series along with a capacitor in parallel with them. It has provisions for Dual power supplies with bypass capacitors but you can jumper the minus power supply to Ground for single power supplies circuits.
It includes a potentiometer for Offset on pins 1 & 5 with pin 8 not connected. This PCB can be used with ANY standard Op Amp such as the LM741, TL071, LF351, OP27, and many more. There are a ton of designs that you can build. Just populate the parts that you need for an incredilble array of circuits. Use this as a Prototype Development Board to design your circuits or use it in the actual project.
This kit also includes different values of 1/4 Watt Leaded Resistors, NPN & PNP Transistors, Aluminum & Ceramic & Tantalum Capacitors, Signal & Power & Zener Diodes, LEDs, Trimpots, an Electret Microphone, a miniature Speaker, Pushbutton Switches, an IC Socket, and more. It also includes some Electronic Hardware so that you can interface your circuits to the outside world. With these parts, you can make numerous circuits such as active filters, pre-amps, signal conditioners, function generators, and much more. Search the web for incredible circuits to build.
Open the links below for more information.
General Instructions Schematics Parts List
